Problème avec JSF + Hibernate + sous netbeans 7.0.1

**chniter** · 27/11/2011, 18h50

salut
Je suis entrain de développer une application web sous netbeans 7.0.1.
J'utilise hibernate et JSF.
Pour hibernate j'utilise les annotations (pas de fichiers hbm).
Ma base de données contient une seule table "Entreprise".

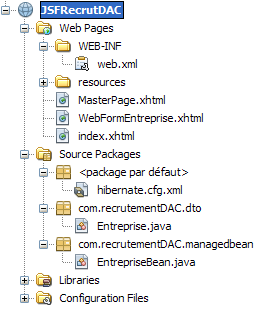

Mon projet:

hibernate.cfg.xml:

Code :

Sélectionner tout - Visualiser dans une fenêtre à part

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE hibernate-configuration PUBLIC "-//Hibernate/Hibernate Configuration DTD 3.0//EN" "http://hibernate.sourceforge.net/hibernate-configuration-3.0.dtd">
<hibernate-configuration>
  <session-factory>
    <property name="hibernate.dialect">org.hibernate.dialect.PostgreSQLDialect</property>
    <property name="hibernate.connection.driver_class">org.postgresql.Driver</property>
    <property name="hibernate.connection.url">jdbc:postgresql://localhost/JSFRecrutDB</property>
    <property name="hibernate.connection.username">postgres</property>
    <property name="hibernate.connection.password">0852</property>
        <!-- JDBC connection pool (use the built-in) -->
        <property name="connection.pool_size">1</property>

        <!-- SQL dialect -->
        <property name="dialect">org.hibernate.dialect.PostgreSQLDialect</property>

        <!-- Disable the second-level cache  -->
        <property name="cache.provider_class">org.hibernate.cache.NoCacheProvider</property>

        <!-- Echo all executed SQL to stdout -->
        <property name="show_sql">true</property>

        <!-- Drop and re-create the database schema on startup -->
        <property name="hbm2ddl.auto">create</property>

 <!-- Names the annotated entity class -->
        <mapping class="com.recrutementDAC.dto.Entreprise"/>

  </session-factory>
</hibernate-configuration>

Classe Entreprise.java (mappage par annotations):

Code :

Sélectionner tout - Visualiser dans une fenêtre à part

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
package com.recrutementDAC.dto;

import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;
import javax.persistence.Table;

/**
 *
 * @author Administrateur
 */
@Entity
@Table(name = "Entreprise")
public class Entreprise {

    @Id
@GeneratedValue(strategy = GenerationType.AUTO)
private int Ent_Id;
@Column (name= "Nom_Entreprise")
private String Ent_Nom;


public int getEnt_Id() {
	return Ent_Id;
}
public void setEnt_Id(int ent_Id) {
	Ent_Id = ent_Id;
}
public String getEnt_Nom() {
	return Ent_Nom;
}
public void setEnt_Nom(String ent_Nom) {
	Ent_Nom = ent_Nom;
}
}

JSF Managed Bean: EntrepriseBean:

Code :

Sélectionner tout - Visualiser dans une fenêtre à part

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
package com.recrutementDAC.managedbean;

import com.recrutementDAC.dto.Entreprise;
import javax.faces.bean.ManagedBean;
import javax.faces.bean.RequestScoped;
import org.hibernate.Session;
import org.hibernate.SessionFactory;
import org.hibernate.cfg.Configuration;

/**
 *
 * @author Administrateur
 */
@ManagedBean
@RequestScoped
public class EntrepriseBean {

    /** Creates a new instance of EntrepriseBean */
    public EntrepriseBean() {
    }

    public void addEntreprise() {

        Entreprise e = new Entreprise();
        e.setEnt_Nom("Mon societé");
        System.out.println("Debut Ajout");
        SessionFactory sessionFactory1 = new Configuration().configure().buildSessionFactory();
        Session session1 = sessionFactory1.openSession();
        session1.beginTransaction();
        session1.save(e);

        session1.getTransaction().commit();
        session1.close();
    }
}

WebFormEntreprise.xhtml

Code :

Sélectionner tout - Visualiser dans une fenêtre à part

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
<?xml version='1.0' encoding='UTF-8' ?>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml"
      xmlns:ui="http://java.sun.com/jsf/facelets"
      xmlns:h="http://java.sun.com/jsf/html">

    <body>

        <ui:composition template="./MasterPage.xhtml">

            <ui:define name="top">
                top
            </ui:define>

            <ui:define name="left">
                left
            </ui:define>

            <ui:define name="right">
                right
            </ui:define>

            <ui:define name="content">
                <h2>Add New Entreprise</h2>
                <h:form>

                    <h:commandButton value="Submit" action="#{entrepriseBean.addEntreprise()}" />

                </h:form>
            </ui:define>

            <ui:define name="bottom">
                bottom
            </ui:define>

        </ui:composition>

    </body>
</html>

web.xml

Code :

Sélectionner tout - Visualiser dans une fenêtre à part

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
<?xml version="1.0" encoding="UTF-8"?>
<web-app version="3.0" xmlns="http://java.sun.com/xml/ns/javaee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd">
    <context-param>
        <param-name>javax.faces.PROJECT_STAGE</param-name>
        <param-value>Development</param-value>
    </context-param>
    <servlet>
        <servlet-name>Faces Servlet</servlet-name>
        <servlet-class>javax.faces.webapp.FacesServlet</servlet-class>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>Faces Servlet</servlet-name>
        <url-pattern>/faces/*</url-pattern>
    </servlet-mapping>
    <session-config>
        <session-timeout>
            30
        </session-timeout>
    </session-config>
    <welcome-file-list>
        <welcome-file>faces/index.xhtml</welcome-file>
    </welcome-file-list>
</web-app>

Je veux jsute tester l'ajout d'une entreprise. Quand j'exécute le WebFormEntreprise , je clique sur le bouton submit , j'ai un message d'erreur :

Code :

Sélectionner tout - Visualiser dans une fenêtre à part

1
2
An Error Occurred:
org.hibernate.MappingException: An AnnotationConfiguration instance is required to use <mapping class="com.recrutementDAC.dto.Entreprise"/>

- Stack Trace:

Code :

Sélectionner tout - Visualiser dans une fenêtre à part

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
javax.faces.el.EvaluationException: org.hibernate.MappingException: An AnnotationConfiguration instance is required to use <mapping class="com.recrutementDAC.dto.Entreprise"/>
	at javax.faces.component.MethodBindingMethodExpressionAdapter.invoke(MethodBindingMethodExpressionAdapter.java:102)
	at com.sun.faces.application.ActionListenerImpl.processAction(ActionListenerImpl.java:102)
	at javax.faces.component.UICommand.broadcast(UICommand.java:315)
	at javax.faces.component.UIViewRoot.broadcastEvents(UIViewRoot.java:794)
	at javax.faces.component.UIViewRoot.processApplication(UIViewRoot.java:1259)
	at com.sun.faces.lifecycle.InvokeApplicationPhase.execute(InvokeApplicationPhase.java:81)
	at com.sun.faces.lifecycle.Phase.doPhase(Phase.java:101)
	at com.sun.faces.lifecycle.LifecycleImpl.execute(LifecycleImpl.java:118)
	at javax.faces.webapp.FacesServlet.service(FacesServlet.java:593)
	at org.apache.catalina.core.StandardWrapper.service(StandardWrapper.java:1539)
	at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:281)
	at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:175)
	at org.apache.catalina.core.StandardPipeline.doInvoke(StandardPipeline.java:655)
	at org.apache.catalina.core.StandardPipeline.invoke(StandardPipeline.java:595)
	at com.sun.enterprise.web.WebPipeline.invoke(WebPipeline.java:98)
	at com.sun.enterprise.web.PESessionLockingStandardPipeline.invoke(PESessionLockingStandardPipeline.java:91)
	at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:162)
	at org.apache.catalina.connector.CoyoteAdapter.doService(CoyoteAdapter.java:330)
	at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:231)
	at com.sun.enterprise.v3.services.impl.ContainerMapper.service(ContainerMapper.java:174)
	at com.sun.grizzly.http.ProcessorTask.invokeAdapter(ProcessorTask.java:828)
	at com.sun.grizzly.http.ProcessorTask.doProcess(ProcessorTask.java:725)
	at com.sun.grizzly.http.ProcessorTask.process(ProcessorTask.java:1019)
	at com.sun.grizzly.http.DefaultProtocolFilter.execute(DefaultProtocolFilter.java:225)
	at com.sun.grizzly.DefaultProtocolChain.executeProtocolFilter(DefaultProtocolChain.java:137)
	at com.sun.grizzly.DefaultProtocolChain.execute(DefaultProtocolChain.java:104)
	at com.sun.grizzly.DefaultProtocolChain.execute(DefaultProtocolChain.java:90)
	at com.sun.grizzly.http.HttpProtocolChain.execute(HttpProtocolChain.java:79)
	at com.sun.grizzly.ProtocolChainContextTask.doCall(ProtocolChainContextTask.java:54)
	at com.sun.grizzly.SelectionKeyContextTask.call(SelectionKeyContextTask.java:59)
	at com.sun.grizzly.ContextTask.run(ContextTask.java:71)
	at com.sun.grizzly.util.AbstractThreadPool$Worker.doWork(AbstractThreadPool.java:532)
	at com.sun.grizzly.util.AbstractThreadPool$Worker.run(AbstractThreadPool.java:513)
	at java.lang.Thread.run(Thread.java:619)
Caused by: org.hibernate.MappingException: An AnnotationConfiguration instance is required to use <mapping class="com.recrutementDAC.dto.Entreprise"/>
	at org.hibernate.cfg.Configuration.parseMappingElement(Configuration.java:1600)
	at org.hibernate.cfg.Configuration.parseSessionFactory(Configuration.java:1555)
	at org.hibernate.cfg.Configuration.doConfigure(Configuration.java:1534)
	at org.hibernate.cfg.Configuration.doConfigure(Configuration.java:1508)
	at org.hibernate.cfg.Configuration.configure(Configuration.java:1428)
	at org.hibernate.cfg.Configuration.configure(Configuration.java:1414)
	at com.recrutementDAC.managedbean.EntrepriseBean.addEntreprise(EntrepriseBean.java:31)
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:39)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:25)
	at java.lang.reflect.Method.invoke(Method.java:597)
	at javax.el.BeanELResolver.invokeMethod(BeanELResolver.java:737)
	at javax.el.BeanELResolver.invoke(BeanELResolver.java:467)
	at javax.el.CompositeELResolver.invoke(CompositeELResolver.java:254)
	at com.sun.el.parser.AstValue.invoke(AstValue.java:228)
	at com.sun.el.MethodExpressionImpl.invoke(MethodExpressionImpl.java:297)
	at com.sun.faces.facelets.el.TagMethodExpression.invoke(TagMethodExpression.java:105)
	at javax.faces.component.MethodBindingMethodExpressionAdapter.invoke(MethodBindingMethodExpressionAdapter.java:88)
	... 33 more

Merci d'avance de votre aide.
